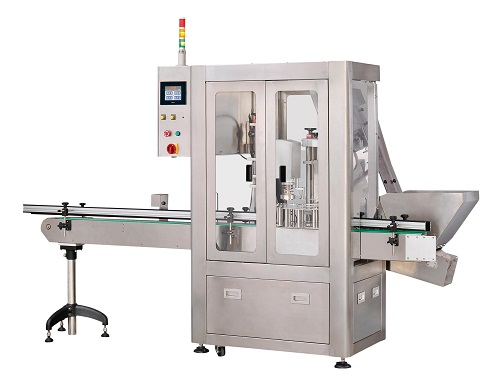

High Speed Rotary Capping Machine CR-415S is versatile monobloc starwheel based, fully automatic capping machine which can be customised to suit the application. It can be integrated into an existing line or supplied as a self contained unit with in-feed, out-feed systems and conveyors with options for filling, plugging, capping and many other features. |
FEATURES: |
|
- Servo motor torque capping heads control torque
digitally
- PLC Control system combined with HMI(touch
screen)
- Automatic Cap elevator, feed and place cap at
once
- Digital output torque adjustment
- Emergency stop and Three -color indicate light
- Continuous capping 「No Bottle,No Cap」Design
- Heavy-duty conveyor by MCC slat top-chain
- Linear Cutting capping head to ensure
- Quick swap change parts
- 20 slots memory recall
- Frame and component made of SUS#304 and ion
anodized aluminum, all meet cGMP requirement
- Water-proof with IP54 grade
- Safety interlocks with clear acrylic guard,
auto-stop when door is open
|
OPTIONS: |
|
- Low cap supply sensor and alarms
- Alarm for miss-aligned or missing caps
- Bottle infeed and outfeed system
- Customized star wheel and capping head
- Turnkey linkage with filler, labeler and other
in-line systems
|
SPECIFICATIONS: |
|
- Cap type: Screw and press cap (Customized cutting)
- Standard Cap Size: 25mm – 60mm O.D
- Capping Speed: 30~40 Bottles/min
- Air Requirements: 90 PSI @ 3 CFM6Kg
- Power: single phase 110/220VAC, 50/60Hz
- Machine Dimension: (L)2758mm (W)1237mm (H)1800mm
(For reference only, the real drawing should be considered as final.)
|
