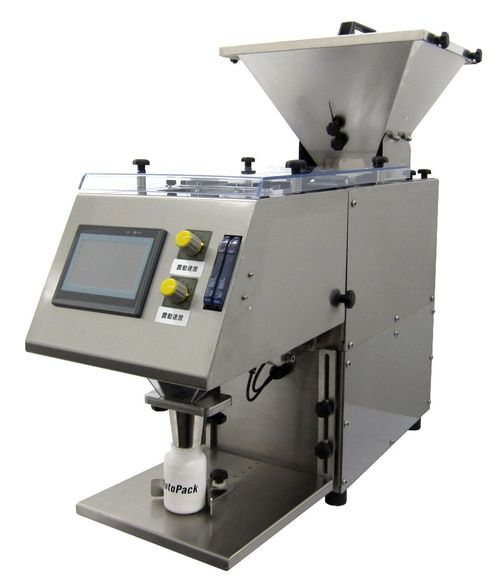

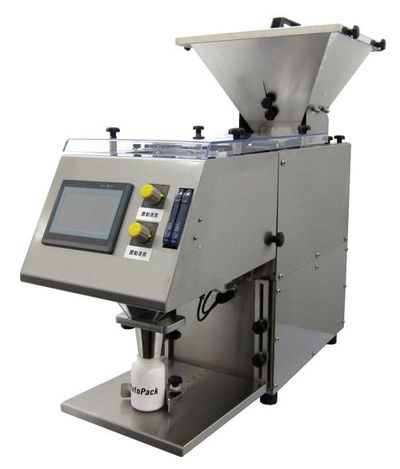

Tabletop Twin-Channel Tablet / Capsule Counting Machine


Model No.: TM-100


Tabletop Twin-Channel Tablet Counter


TM-100 counter is designed to feed and count any size,shape or quantity of tablet and capsule without change parts.
It's simple to operate and easy to clean.

FEATURES:

  • Variable speed control for twin tracks
  • Stainless steel outlet funnel and clear plastic dust cover
  • Tool-free release for counting different products
  • Japan made “ Keyence” high accuracy fiber sensor
  • Front mounted touch screen control panel
  • Count display with reset
  • Height adjustable support stand
  • Tabletop or conveyor mounting
  • Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
  • 1.5L Product hopper (20L available)

OPTIONS:

  • Drugs bag pre-filling machine
  • Conveyor mounting

SPECIFICATIONS:

  • Counting Speed: 300~600 pcs/min
  • Power: Single Phase 110 or 220VAC, 50/60Hz
  • Air requirement: 2 CFM at 90 PSI
  • Bottle Size: 48mm~100mm ; Max Height 116mm
  • Product Range: 2mm-40mm
  • Machine Dimensions: (L)390mm (W)826mm (H)761.5mm
    (For reference only, the real drawing should be considered as final.)

DOWNLOAD:
Tabletop Twin-Channel Tablet Counter Tabletop Twin-Channel Tablet Counter

The above specifications are subject to change without prior notice.
